Cutting Edge UV-Visible-NIR & Raman Microspectroscopy

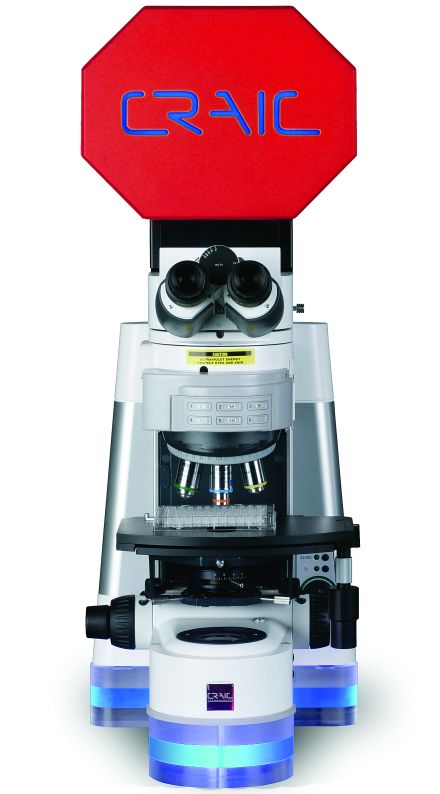

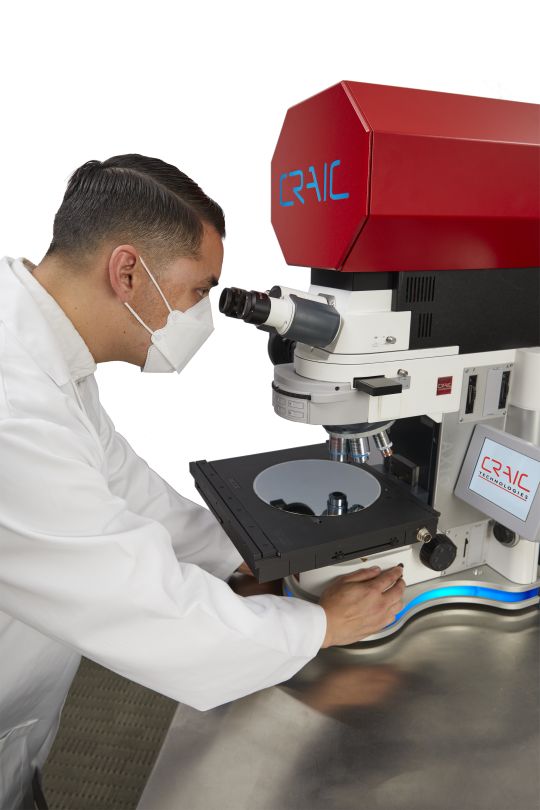

The 2030PV PRO™ microspectrophotometer is the most powerful micro-analysis instrument from CRAIC Technologies. Built to meet your requirements, it incorporates the latest technological advances in optics, spectroscopy, electronics and software to deliver the superior performance with unparalleled speed and unique capabilities. Featuring the ease-of-use for which CRAIC instruments are known, this instrument the cutting edge of UV-visible-NIR microspectroscopy.
The 2030PV PRO™ microspectrophotometer combines the latest technologies to allow the user to measure UV-visible-NIR range transmission, absorbance, reflectance, emission and photoluminescent microspectra™ of sample areas smaller than a micron across. Even the thickness of thin films and color spaces may be determined. And while microspectra™ are being acquired, the sample may be viewed with high-resolution digital imaging in the deep UV, in color or in the near infrared. Ease of use features also add to the power of the 2030PV PRO™ system and include everything from improvements in the instruments ergonomics to software to automation.
The 2030PV PRO™ microspectrophotometer is simple to use, the measurements are non-destructive and the spectral data is unmatched.
Features
Key Features*
|
The 2030PV PRO™: superior UV-visible-NIR spectra and images of microscopic samples.
|
|
UV-vis-NIR Microspectroscopy
Cutting edge microspectroscopy from the leaders
|
A fully integrated microspectrometer with a spectral range from the deep UV through the near infrared. Simultaneous and direct imaging of both the sampling aperture and the sample makes for fast, accurate measurements. Featuring Scorpii™, SampleSafe™ and Lightblades™ technology, the 2030PV PRO™ gives you the ability to measure transmission, reflectance, Raman, polarization, fluorescence and PL spectra of even sub-micron samples. CRAIC Technologies is also the only recognized source for NIST traceable microspectrometer standards. |
 |

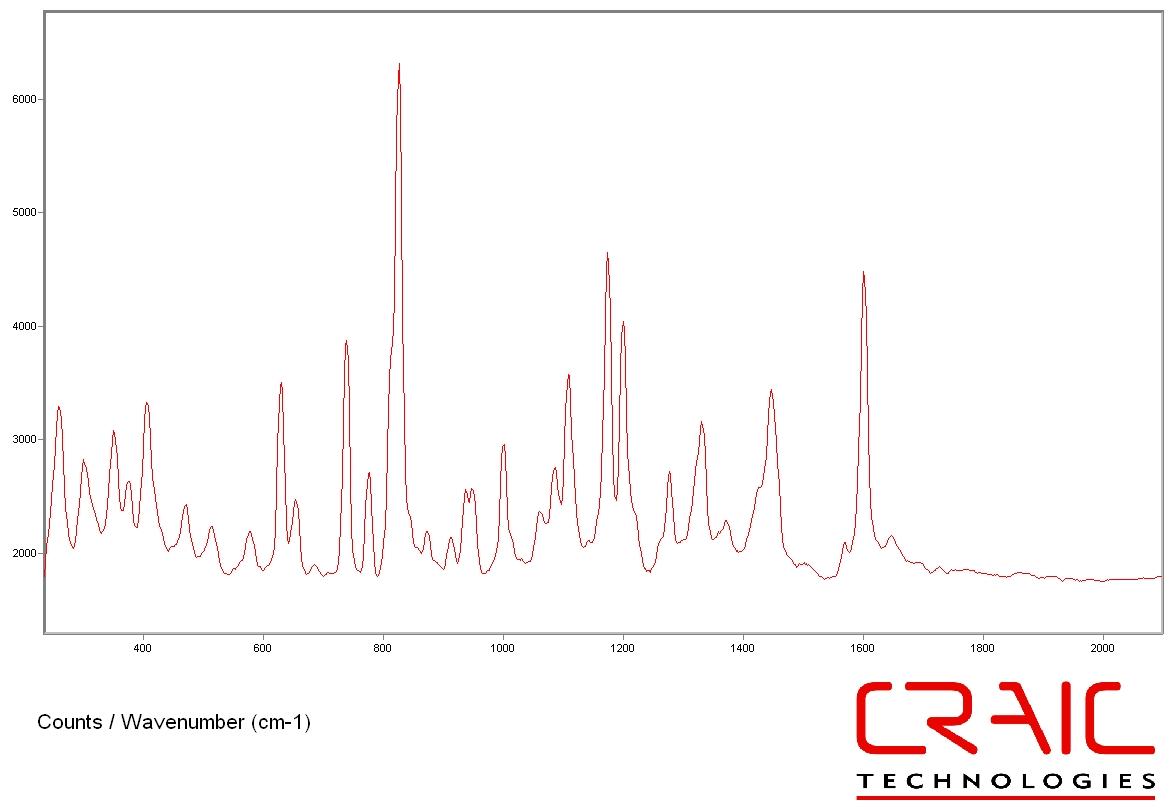

Raman Microspectroscopy
The Power of Raman Microspectroscopy
| When fitted with the CRAIC Apollo™ Raman spectrometer module, the 2030PV PRO™ is capable of Raman spectroscopy of microscopic samples. The system includes a wide range of lasers, Lightblades™ Raman spectrometers and the interface optics that allow you to collect high quality Raman spectra of your samples. |  |
Photoluminescence
High sensitivity emission microspectroscopy & imaging
| The 2030PV PRO™ can be configured for fluorescence and luminescence spectra and images of microscopic samples. Featuring Lightblades™ technology and with excitation ranging from the deep UV to the near infrared and the ability to measure the emission in the same range, the 2030PV PRO™ is a powerful tool for microfluorometry for materials sciences, biology, geology and more. |  |
Polarization
Microspectroscopy & imaging of UV-visible-NIR polarization
| 2030PV PRO™ can be configured to acquire the polarization spectra and images of even the smallest samples. Featuring Lightblades™ technology and with a spectral range from the UV to the NIR, the 2030PV PRO™ polarization microspectroscopy capabilities are unparalleled. The spectra and images of birefringent and other types of samples with polarization characteristics can be acquired quickly and easily with this sophisticated system. |  |
Spectral Surface Mapping
|
Combines hardware and software for automated spectral analysis and 5D mapping of samples with microscopic spatial resolution. 5D maps of the absorbance, transmission, reflectance, fluorescence, emission, time resolved and Raman spectra of samples may be generated. |
 |

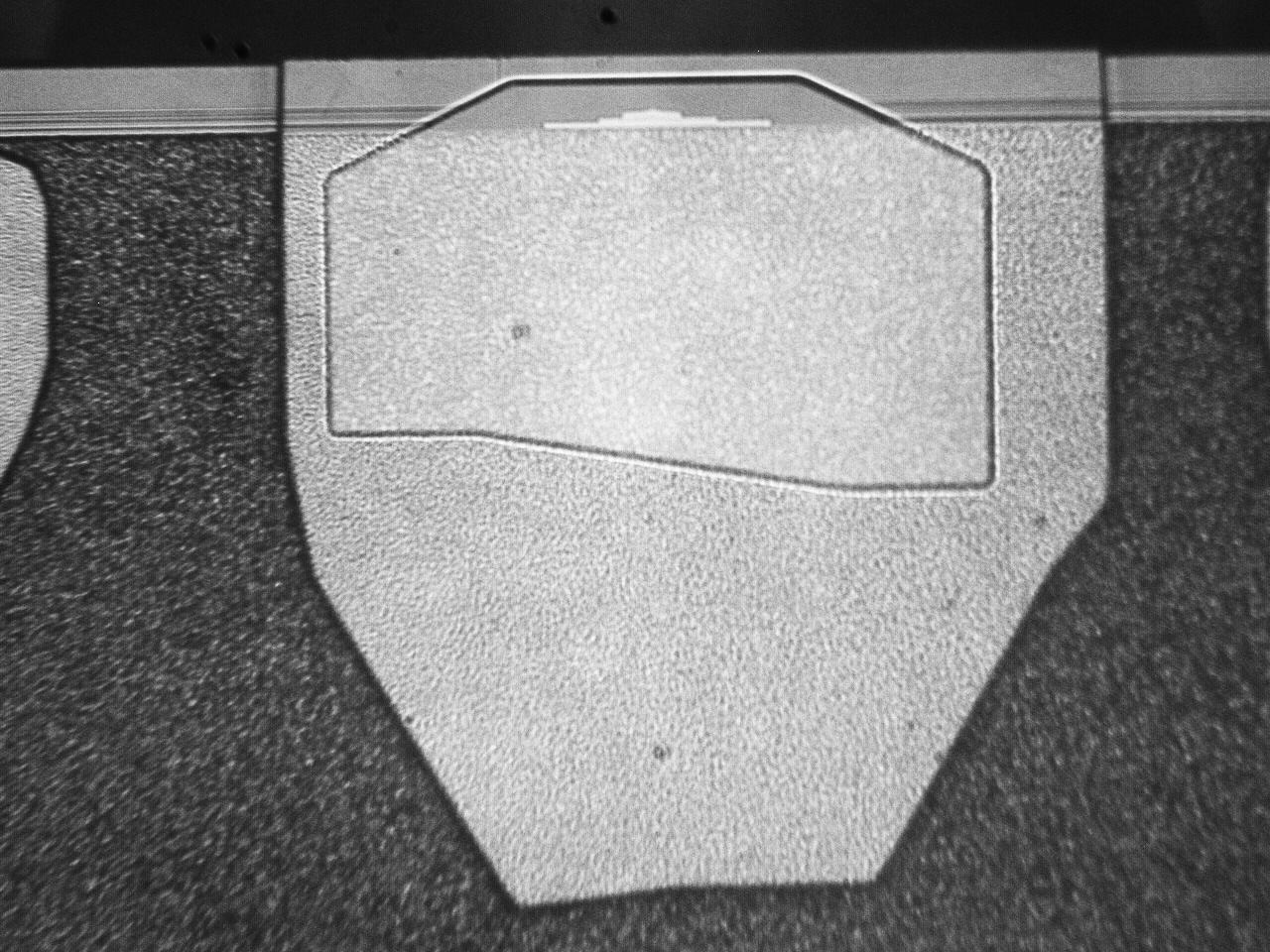

UV-vis-NIR Microimaging
Superior image quality from the UV to the NIR
| The 2030PV PRO™ includes a unique UV-visible-NIR microscope with research grade optics. Featuring high resolution digital imaging for color, UV and the NIR regions, the 2030PV PRO™ has sophisticated imaging software. This gives you the ability for both real time and image capture of samples by transmission, reflectance, polarization and fluorescence microscopy quickly and easily. |  |

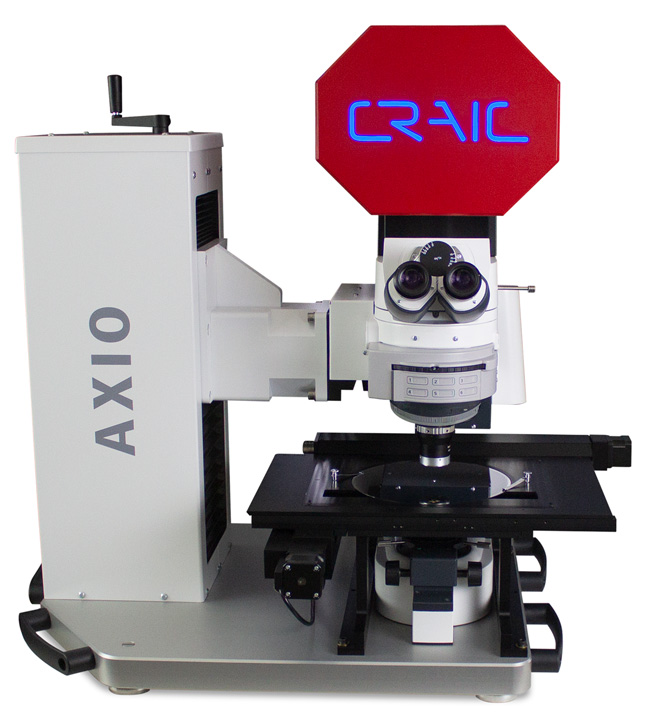

2030XL PRO™ for Large Samples
Spectra of large samples with micro spatial resolution
|
The 2030XL PRO™ microspectrophotometer is designed to allow you to acquire spectra, images, and film thickness measurements of microscopic features of large scale samples. "XL" stands for "extra large" and these are the types of samples for which this instrument was built. Learn more here |
 |
Applications
Applications

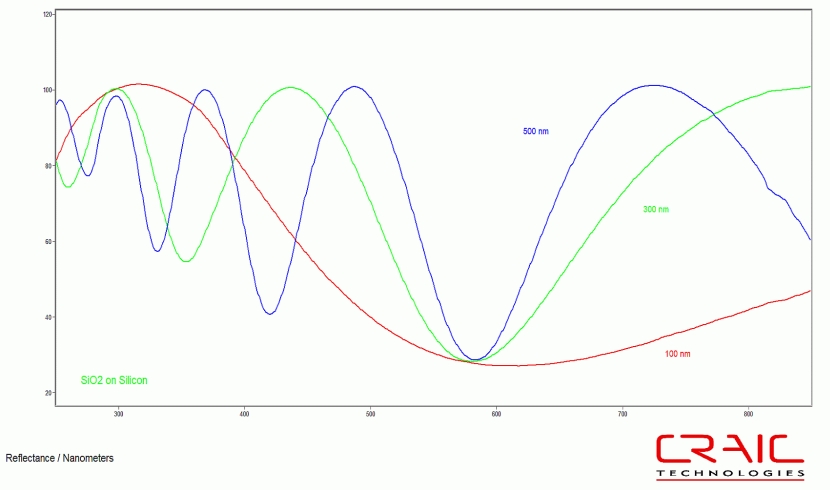

- Semiconductor Film Thickness
- MEMS devices
- Nanotechnology
- Surface Plasmon Resonance
- Photonic Bandgap Crystals
- Process Impurity Detection
- Protein Crystals
- Forensic Science
- Drug Chemistry
- Questioned Documents
- OLED's
- Flat Panel Color Masks
- Combinatorial Chemistry
Support
CRAIC Technologies provides service and support for it's instruments worldwide. CRAIC Technologies service engineers offer instrument repair, maintenance, training and technical support for all aspects of CRAIC Technologies products.
Perfect Vision for Science™
The lit microscope base and the lit octagonal optical head are trademarks of CRAIC Technologies, Inc. CRAIC Technologies, 2030PV™, FLEX™, 508PV™, Apollo™, GeoImage™, rIQ™, Lambdafire™, Lightblades™ and "Perfect Vision for Science" are all trademarks of CRAIC Technologies, Inc. Instrument features offered depend upon instrument configuration. Features listed here may not be present in some configurations.
*Features and specifications depend upon instrument configuration. Specifications subject to change without notice.
UV-visible-NIR microscopes, UV-visible-NIR microspectrometers and Raman microspectrometers are general purpose laboratory instruments. They have not been cleared or approved by the European IVD Directive, the United States Food and Drug Administration or any other agency for diagnostic, clinical or other medical use.
