Vitrinite reflectance and point counting of coal, coke and petroleum source rock

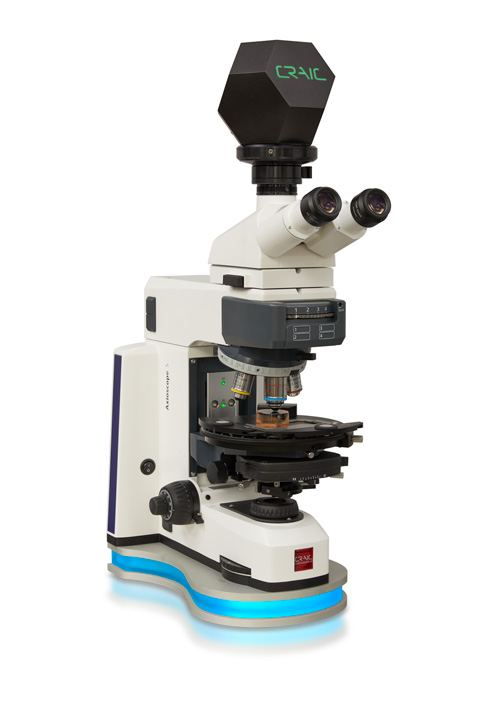

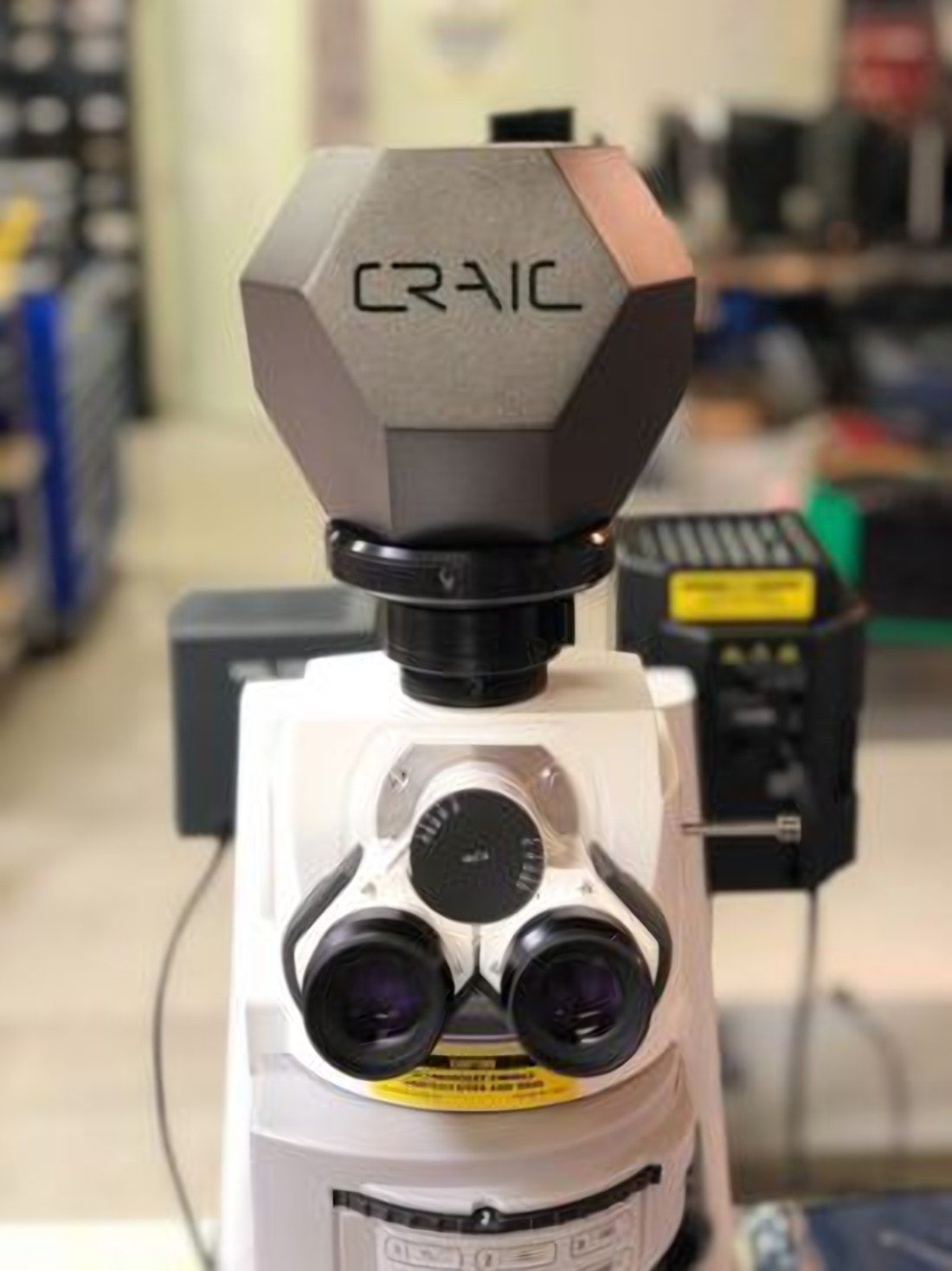

GeoImage™ uses a camera to quickly and accurately measure the reflectance of vitrinite macerals. GeoImage™ is designed for the organic petrographic analysis using Standard Test Methodologies ISO 7404-5 and ASTM D2798.
GeoImage™ works by reading the vitrinite reflectance intensity from each pixel of a calibrated camera. This means that, in the standard configuration, millions of points can be measured at one time...making vitrinite reflectance testing quick, easy and accurate. GeoImage™ can be configured to measure the reflectance from coals, kerogens and petroleum source rock as well as a host of other materials. And with it's flexible design, the GeoImage™ is offered wth point counting capabilities, automation of the test procedure and high resolution color imaging. With no moving parts, GeoImage™ is durable and user friendly. Designed with flexibility and speed in mind, the GeoImage™ vitrinite reflectance measurement system will easily comply with future changes in coal testing methods and your own experiments.
GeoImage™: the smart choice for petrography.
Introduction
Features
GeoImage™ measures vitrinite reflectance, point counting as well as reflectance and fluorescence imaging.
Key Features*
-
- High sensitivity detector with low noise and long term stability for rapid imaging microphotometry
- Measure vitrinite reflectance per ISO 7404 and ASTM D2798 standard test methods.
- CRAIC Vitrinite Reference Materials available
- Precision 546 nm reflectance measurements
- Color fluorescence imaging
- Can be upgraded to full range microspectroscopy
- Can be upgraded to fluorescence microspectroscopy
- Upgrade your old coal reflectance system and work faster and with better results
- Manual or fully automated operation
- Precision temperature control of samples
- Easy to use and maintain
- From the experts in microspectroscopy
Vitrinite Reflectance
ISO 7404 and ASTM D2798
|
The GeoImage™ is designed to measure the reflectance of vitrinite macerals per ISO 7404 and ASTM D2798 standard methods. Offered both in manual and automated mode, the system produces industry standard reports when used with CRAIC Vitrinite Reflectance Standards. Test reports can also be customized to your particular requirements.
|
 |
Software
Sophisticated algorithms

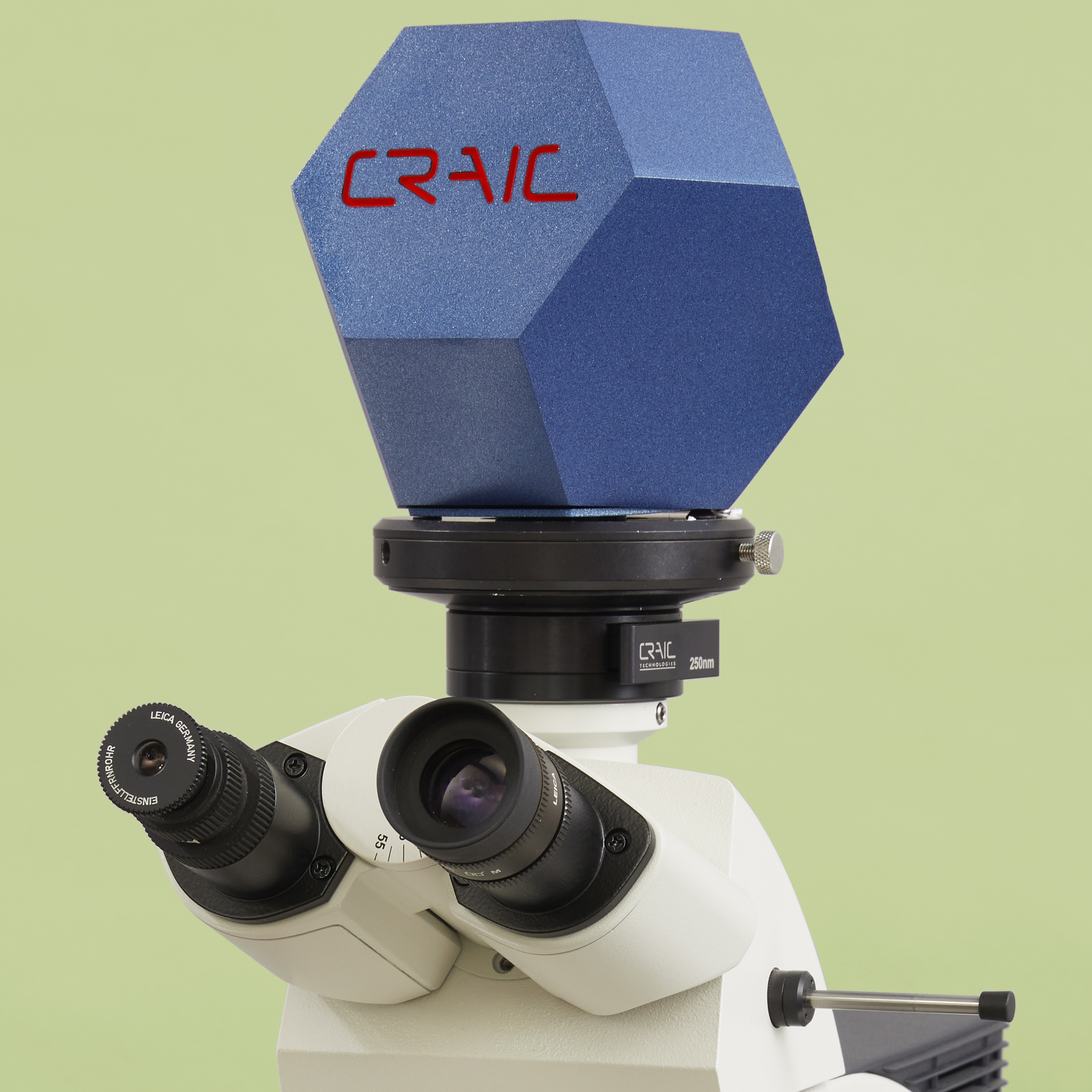

| rIQ 3™ software is designed to be intuitive yet also incorporates powerful algorithms to determine the refractive index of glass with the highest precision. The rIQ™ system also features environmental monitoring, including ambient temperature and control, as well as advanced database and statistical analysis capabilities. Designed to be intuitive and easy-to-use, it is also flexible and offers many additional capabilities such as the ability to customize reports. |  |
Support
CRAIC Technologies provides service and support for it's instruments worldwide. CRAIC Technologies service engineers offer instrument repair, maintenance, training and technical support for all aspects of CRAIC Technologies products.
Perfect Vision for Science™
Introduction
Features
Vitrinite Reflectance
ISO 7404 and ASTM D2798
The GeoImage™ is designed to measure the reflectance of vitrinite macerals per ISO 7404 and ASTM D2798 standard methods. Offered both in manual and automated mode, the system produces industry standard reports when used with CRAIC Vitrinite Reflectance Standards. Test reports can also be customized to your particular requirements.
Point Counting
Point counting is a statistical method wherein the petrographer analyzes a large number of points, typically 100 to 500, and recording the type of rock seen at each point. The entire dataset is then analyzed to give a more detailed description of the rock sample. This optional feature allows for industry standard reports of any mineral sample.
Imaging
The GeoImage™ offers high resolution, color digital imaging with sophisticated software. This makes it very easy to align the sample for measurements and to capture full color images under any measurement conditions.
Fluorescence
The GeoImage™ can also image the fluorescence of coals, kerogens and petroleum source rock easily and quickly. With the ability to image, the GeoImage™ is a powerful tool for the analysis of geological samples...including fluid inclusions.
Applications
Applications
- Vitrinite Coal Reflectometry
- Organic Petrography
- Kerogen Analysis
- Petroleum Source Rock Analysis
- Petrochemistry
- Reflectance microspectroscopy
- Transmission microspectroscopy
- Fluorescence microspectroscopy
- Color imaging
- Mineralogy analysis
- Gemology
Support
CRAIC Technologies provides service and support for it's instruments worldwide. CRAIC Technologies service engineers offer instrument repair, maintenance, training and technical support for all aspects of CRAIC Technologies products.
*Features and specifications depend upon instrument configuration. Specifications subject to change without notice.
